Aerolith Material Series
AE5
AE10
AE20
AE30 |
Aerolith Material SeriesSpecial porous silicate granules exclusively manufactured by Pall Schumacher, are sintered with a siliceous
bond to form a material of homogeneous composition named Aerolith. The porous Aerolith ceramic consists mainly of crystalline and amorphous silicates and the colour is white. |
 |
|
Brandol Material Series
BR 50
BR 60
BR 120 |
Brandol Material SeriesBRANDOL-diffusers are very proven duroplast diffusers mainly used for the aeration of waste water for more than 50 years. These are composed of pure quartz sand bonded with a resin binder to form a stable, mechanically strong porous element. Due to the exactly defined quartz grain size distribution and a well controlled production method the BRANDOL cylinders and discs have a remarkably homogeneous porous structure. This results in a very uniform air distribution and bubble release. |
 |
|
CLARIS Series..........................
CLR 3-20DOES
CLR 5-10SOES
CLR 10-50DOES
CLR 20-30SOES |
CLARIS Series Graded Pore Structure Enhances Dirt Holding Capacity E-core, an Extruded Fibrous Core, Provides Excellent Strength Unique Proprietary Process Easy and Safe Cartridge Incineration and DisposalAll Polypropylene ConstructionFree of Surfactants, Binders, and Adhesives |
 |
| CMPure CMPD Series |
CMPure CMPD Series
All polypropylene construction
Continuous gradient pore structure
for built-in prefiltrationCompatible with metal (W, Cu, Al),oxide and STI slurries
Available also as disposable filtercapsules |
 |
|
DFT Classic Fluoropolymer Series
T001A10Y-M3
T003BBW20Y-M3
T010BBW30Y-M3
T025AW40Y-M3
T0.5BB10Y-M3
|
All PTFE for compatibility with a wide range of process fluids Available in retention ratings of 0.5, 1, 3, 10 or 25 μm Fits most standard housings
May be used as a final filter in many applications, or to provide superior protection for membrane final
filters PVDF and PFA housings are available for use in all fluoropolymer filtration systems M3 or DOE end configurations available as standard products |
 |
DFT Classic Series
CC010AW30SCE-ECIS-IPX
CC002AW20SCE-ECIS-IPX |
DFT Classic Series
Graded pore structure for efficient removal of wide rangeof particle sizes
Cost savings from long service filter life
Diverse range of removal ratings
Wide chemical compatibility
Suitable for liquid and gas filtration
High contaminant-holding capacity
Cartridges fit into most standard housings
Various cartridge sealing options
Numerous cartridge configurations
Manufactured under ISO 9001 qualitysystem |
 |
|
DFT KK Series
U0.5KK-20
U001KK-20
U005KK-9.875
U010KK-20
U025KK-20 |
DFT KK Series
Polypropylene fiber
Removal ratings from 0.5 to 25 microns (μm)Available in 9 7 8" and 20" lengths
High contaminant-holding capacity
Manufactured under ISO 9001 quality system |
 |
|
Dia-Filtroplast filter elements
DFL 10-80 A
DFL 10-80 A |
Dia-Filtroplast filter elements are manufactured from High Density PolyEthylene (HDPE). The coarse grained support body is coated with a thin, fine filtering Polyethylene membrane, and both are strongly sintered together in a controlled sintering process. This results in an integral fusing of support and membrane giving a high abrasion resistance and an excellent cleanability. Furthermore, the barrier filter element Dia-Filtroplast can be backflushed even at high pressures. The standard Polyethylene barrier filter is named Dia-Filtroplast 10-80 A. The colour of the membrane is gray. If required the Dia-Filtroplast filter elements can also be delivered with a white membrane as a custom made product. |
 |
|
Dia-Schumalith filter elements
F-20;03-20
F-40
03-20;05-20;10-20
10-20
03-20;05-20;10-20 |
Dia-Schumalith filter elements are successfully used as backwashable surface filters for particle separation from hot gases and aggressive liquids. They are made of a coarse porous support body of silicon carbide
ceramically bonded with a fine filtering membrane. Different membranes are available depending on field of application and demanded filtration efficiency. The combination of support body and membrane guarantees a
low differential pressure at high filtration fineness and an excellent cleaning behaviour. Dia-Schumalith filter elements are especially used in the field of hot gas filtration due to its outstanding resistance to temperature
changes. |
 |
|
DUROCEL
DC 20
DC 5 ;DC20 |
DUROCEL is a high porous filter media made of resin bonded micro glass fibres. The material composition as well as a special process of manufacturing guarantee form stable filter cylinders. The combination of fine pores, high porosity and a large inner surface offers a filter media with low pressure loss at a concurrently efficient separation behaviour. DUROCEL-
elements are therefore mainly used as fine filters or filtration of gases. The large inner surface of the bonded glass fibre network makes DUROCEL to an excellent coalesczing filter. |
 |
|
Encore Series
5C19.5TC-ET-1PK
10NC10AC-ES-1PK
20P20UC-EA-1PK
50SC39SC-EU-1PK
75NC40TC-ES-1PK
100SC50AC-ET-1PK |

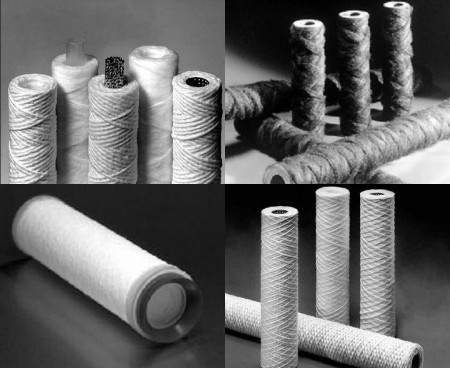

Encore Series Precision wound depth filter cartridges provide cost effective filtration of fluids Premium cotton, standard cotton, premium polypropylene, natural cotton, and general purpose polypropylene filter media available Retention ratings from 1-200 μm Cartridge lengths from 9 3
4￣ (24.8 cm) to 50" (127 cm)
permit rapid installation into most filter housings Core cover and extended core options available |
 |
|
Hi-V Resin Bonded Series
50RPN10-EE
10RPN20-EE
25RPN30-EE
75RPN39-EE
5RPN29.5-EE
XLRPN3.75-EE
120RPN4-EE |
Hi-V Resin Bonded Series Designed for Highly Viscous Fluids Reliable, Consistent Filtration Negligible Media Migration
No Epoxies, Glues or Adhesives One Piece Construction High Contaminant Holding Capacity Very High Flow Rates No Center Core for Easy Disposal Exceptional, Economical Particle Classifier for
Pigmented Coatings |
 |
|
M3 DFT CLASSIC Series
C005AW10UN-M3
SC001AW10US-M3
U003AW20UE-M3
U010AW30UV-M3
C025AW40UN-M3 |
M3 DFT CLASSIC Series Double O-ring Sealing Effectively Eliminates Potential Fluid Bypass in Most Applications
No Epoxies or Glues To Contaminate Fluid Streams Fits Most Standard 222 O-ring Housings Wide Range of Retention Ratings to Meet Specific Application Requirements Inexpensive Alternative to Pleated Cartridges Polypropylene or Cotton Media Suitable for a Wide Range of ApplicationsExtends Life of Expensive Final Filters in Many Applications |
 |
|
MICROPAK CLARIS Series
MPCL 5-10N
MPCL 10-30E
MPCL 20-9.75S
MPCL 30-30V
MPCL 50-40E
MPCL 75-39.5V |
MICROPAK CLARIS Series Graded Pore Structure Enhances Dirt Holding Capacity E-core, an Extruded Fibrous Core, Provides ExcellentStrength Unique Proprietary Process Easy and Safe Cartridge Incineration and Disposal All Polypropylene ConstructionFree of Surfactants, Binders, and Adhesives
Excellent Chemical Compatibility |
 |
|
Nexis A Filter Cartridge Series
XAQ1 10U DOE E12
NXAQ5 20U M7 T12
NXAQ10 10U DOE E12
NXAQ1 10U M7 T12
NXAQ5 20U DOE E12
NXAQ10 20U M7 T12 |
Nexis A Filter CartridgeFilter Media Polypropylene
Hardware Polypropylene
Gaskets/O-rings Ethylene propylene (EPDM)/FEP Encapsulated Silicone
|
 |
| NEXIS C Series
NXC1-4U-DOES
NXC5-5U-DOES
NXC20-10U-DOES
NXC30-20U-DOES
NXC40-30U-DOES
NXC75-40U-DOES |
Optimized Media Pore Gradient Structure for SharpParticle Size Classification
Features Proprietary CoLD Fiber Technology Longer Filter Life with Low Pressure Drops for Reduced
Filter Usage High Porosity for Excellent Flow Characteristics Resists Contaminant Unloading Even at High DifferentialPressure Automated Manufacturing Process Increases ProductConsistency Filter Grades from 1 to 100 Microns Increased Batch Processing Rates with High Throughput
Efficiencies Improved Product Yields
High Removal Efficiencies of Solid and Deformable Particles |
 |
| Nexis High Flow Series
HFNX620Y100H13
HFNX640Y400HU
HFNX660Y750H4
HFNX620Y1000J
HFNX640Y150H4U
HFNX660Y100JU |
Nexis High Flow Series Large cartridge geometryFeatures proprietary CoLD Melt Technology Gradient pore structure Inside to outside flow traps contaminant inside the elementAvailable in 20, 40 and 60 inch lengths and a variety of filter grades Fits into standard 20, 40 or 60 inch Ultipleat High Flow filter housings |
 |
|
Pall Coreless Filter Elements
E60 2 Y050
E60 4 Y100
E60 2 Y200
E60 4 Y400
E60 2 Y050W
E60 4 Y100W |
Pall Coreless Filter Elements The large diameter filter element features low differential pressure polypropylene, nylon or polyphenylene sulphide (PPS) medium, meaning fewer elements are required for agiven flow rate. Filter vessels are correspondingly smaller,resulting in lower capital and installation costs, as well as
reduced operating costs. |
 |
|
Profile II Filters Excellent
RM1F050H21
RM2F050H21
RM3F050H21
RM4F050H21
RM1F200H21
RM2F200H21
RM3F200H21
RM1F400H21
RM2F400H21 |
Profile II Filters Excellent removal efficiency Continuously profiled porestructure High contaminant holding capacity Low extractables (no binders or resins) Available in many removal ratings and configurations Long service life |
 |
| SCHUMATHERM filter elements |
SCHUMATHERM filter elements are a high-quality porous fireclay ceramic. This material is distinguished by its good chemical and thermal resistance. Therefore cylinders or tiles made of SCHUMATHERM filter ceramic can be used for a large variety of applications as long as special process conditions do not require other process specific materials. One main application for SCHUMATHERM filter cylinders is the use as support material for precoat filtration. The surface structure and the high permeability of SCHUMATHERM builds an ideal support for the precoat.
10,20,40,60 |
 |
| |
|
|
