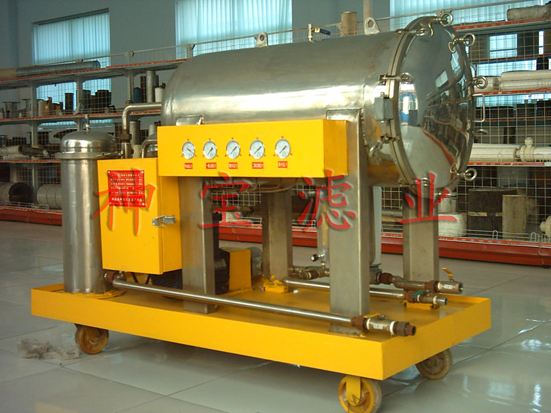

TSC-50 Efficient filtration and dewatering oil filter Cart
|
|
-
TSC-50 Efficient filtration and dewatering oil filter Cart
-
-
Equipment Types of TSC-50
-
① TSC: filtration and dewatering settings
-
② 50: Rated flow 50L/min
-
-
Settings name and dimension :
-
-
1, coalescence separators unloading valve
-
2, inlet
-
3,oil-absorbing filter cartridge
-
4 pump motor group
-
5, sampling valve
-
6, outlet
-
7,sewage blow-off valve of fine filter
-
8, sewage blow-off valve of coalescence separator
-
9, connection valve for coalescence separators & fine filter 10, fine filter (absorption filters)
-
11, fine Filter release valve
-
12, coalescence separator
-
13, electrical meter box
-
14, coalescence separator release valve
-
15, pre-filter release valve
-
16, pre-filter
-
17, connection valve for pre-filter separator and coalescence
-
18, level gauge
-
19, System oil release valve
-
20, water blow down valve
-
21, pre-filter sewage blow-off valve
-
-
performance parameters:
-
-
Rated flow: 50L/min
-
Drift diameter: inlet DN20 (3 / 4 "), outlet DN20 (3 / 4 ")
-
Dimension: 1400 × 760 × 1235 mm(L × W × H)
-
rated Pressure: 0.6Mpa Motor power: 1.1kw
-
Power Supply: 380V/50Hz/3-phase
-
Pre-filter accuracy: 15μm
-
Fine filtering accuracy 5μm
-
Temperature: 0 ~ 80 ℃
-
Pressure difference for filter replacement : 0.15Mpa
-
device features multi-functions with a single motor; Simply operartion with a general switch, easy to repair and maintenance compact structure, unique appearanc ; to pump oil directly without filtration extensive but dense in filtering area,longer service life with fineness longer service life and high effciency in dehydration filter flexible for moving fitting with various ocacsion,cost effectively, one inlet and two outlets on the unit with flexible connection, quick and convenient in replacement of the filter cartridges thanks to it’s flange connection style in the pre-filtration and fine filtration
-
Models and quantity of the matching filters
Oil Filter: SCT80-X6381 1 pc
Pre-Filter: SCT80-L6106151 1 pc
Fine Filter: SCT80-L6106150 1 pc
coalescence filter: SCT80-J51173 3 pcs
separation filter: SCT80 - F51052 2 pcs
|
|
|
|
