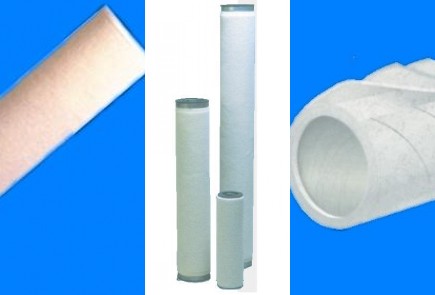

SEBO Supply Gas Filter Replacements (Depth FILTRATION )(Cross with PECO)
SEBO Supply Gas filter Elements(Depth FILTRATION )(Cross with PECO)
AFVG 12 AFVG 18 AFVG 24 AFVG 36
.....................
SAFVG style air filters are specifically designed and engineered for PECO Series 100 Air Intake filter vessels.A phenolic impregnated seamless fiberglass tube gives Test Air Flow:400 CFM Initial Resistance:1.37" W.G. Final Resistance:6.00" W.G. Initial Atmospheric Dust Spot Efficiency:36.5% Average Atmospheric Dust Spot Efficiency:75% ASHRAE Dust Holding Capacity:.21 (lbs),95 (gms)

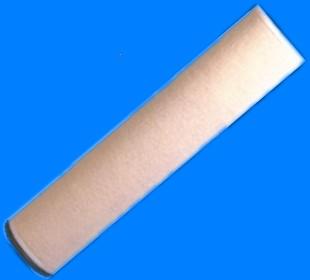

Gas Elements Fiberglass Type
FG12 FG24 FG36 FG72 FG312 FG336 FG372 FG536 FG572
PECO Fiberglass Elements are specifically designed to give fine filtration, high solid contaminant retention and efficient coalescing of liquid mists and fogs that can be mechanically removed from a gas stream.The seamless fiberglass tubes are specifically designed afiltration/coalescing tubes.
Construction •Media:Phenolic impregnated seamless fiberglass tube •Core:Spiral wound,louvered,carbon steel •End Caps:Carbon steel.End cap mechanically attached to core •Outer Cover:Cotton sock •Gasket:Flat buna-n Operational Data •Recommended Initial ∆P: ¡Ü 2 psid •Recommended Element Change ∆P:12-14 psid •Core Strength:3.5¡± O.D.elements ¨C 120 psid 4.5¡± O.D.elements ¨C 50 psid (145 psid also available) 5.5¡± O.D.elements ¨C 35 psid •Maximum Operating Temp:240˚ F •Recommend torque to seal filters:8-10 ft-lb

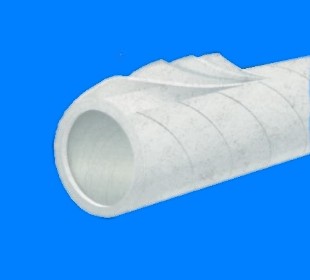

The SPEACH consists of several lateral sections of PEM formed into a conical helix pattern. Each section consists of multiple helicaly wrapped layers.
CONSTRUCTION • Media Polyester or Polypropylene • Gaskets/End Cap Integral thermally bonded polyester or polypropylene. Optional buna-n or viton with metal end caps. • Core None in standard construction. If required ¡ª louvered, carbon steel. OPERATIONAL DATA • Recommended Element Change Out: 12 - 14 PSID / .83 - .97 bar. • See chart below for collapse strengths • Maximum Operating Temp: Polyester 240º F / 116º C Polypropylene 180º F / 82º C Note:Temps from 200º - 240ºF require a core for 4.5¡±& 5.5¡±O.D.filters. • Micron Ratings: 0.5,1,5,10 SCW=0.3 • Recommended Torque to Seal Filters:5-10 ft-lbs
