Name filter model

Model connection mode

Nominal flow rate of Connecting

Flow

(L/min) filter accuracy Filtr.

(UM) nominal pressure Press.

(Mpa) P (Mpa) pressure loss of size Size (mm)

Max D L Initial

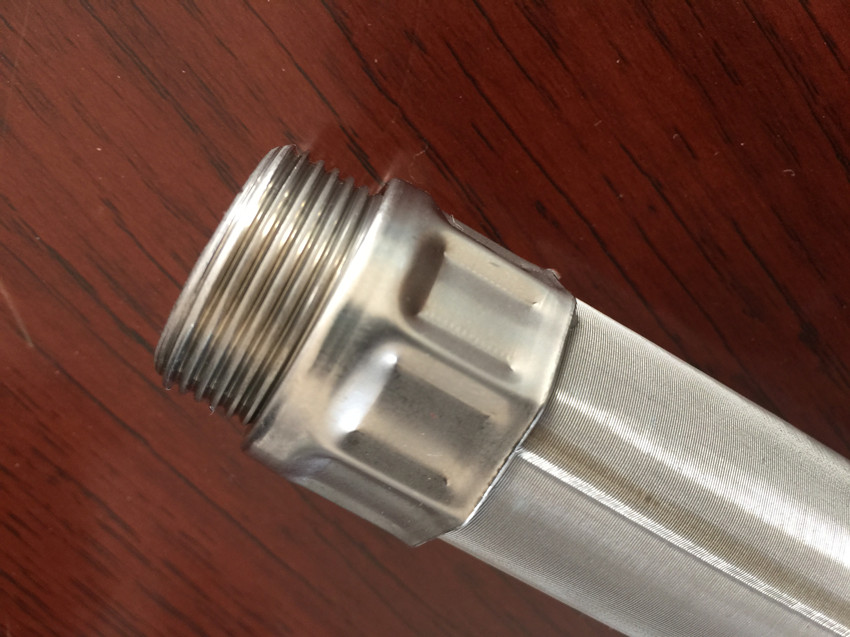

BOLL uses a candle type filter

Product features:

1. A candle type filter is mainly used for oil filter, composed of a plurality of filter element and a magnetic filter combination, with the same specification and dimension, effectively increase the filter area.

2 with the metal wire mesh as the filter media;

The 3 candle type filter has the resistance pressure loss is small, the intensity is high, can be repeated washing, backwashing characteristics etc.;

4 the filter element and the fixing plate are fixed by bolt or screw thread connection, installation, disassembly and cleaning;

The 5 candle type filter of high strength, long service life, strong corrosion resistance, high temperature range, no material from;

6 candle filter area is large, high flow rate, high porosity, good permeability, strong ability to accept dirt, and then strong (can be repeated cleaning);

Application domain:

Suitable for oil filtration in metallurgy, petrochemical, machinery manufacturing, paper making, shipbuilding and other industries.

1 thermal power and nuclear power: gas turbine, boiler lubrication system, such as the purification.

2 Purification and filtration on the lubrication system of the ship.

3 Metallurgy: used for steel rolling mill, hydraulic system of continuous casting machine filter and filtration of all kinds of lubrication equipment.

4 Petrochemical: oil refining, chemical production process in the separation and recovery of products and intermediate products, oilfield water injection and natural gas in addition to particle filter

Performance index:

General filtering accuracy: 20 m 25 m 30 m 40 m 80 m m 100

Work pressure (MAX):1Mpa

Material: general stainless steel skeleton, stainless steel filter (diameter 30*L);

Polypropylene frame, stainless steel filter (phi 19* phi 10*320)

Working medium: lubricating oil and hydraulic oil

Operating temperature: -30 degrees C ~ +110

Connection: thread M26*1.5,

Candle type filter

Candle

SEBO-30 filter * M26 223-* * 1.5

Twenty

Twenty

Twenty-five

Thirty

Forty

801 = 0.1 0.3530223

SEBO-30 * 400-* 3530400

SEBO-30 * 440-* 4030440

SEBO-30 * 723-* 6030723

SEBO-30 * 245-* 262030245

SEBO-30 * 422-* 3530422

SEBO-30 * 462-* 4030462

SEBO-30 * 745-* 6030745
