Pressure Filter DF Flow rates up to 680 l/min Pressure range up to 420 bar Material: Cast Iron - Steel Construction The filter housings are designed in accordance with international regulations. The filters consist of a filter head with a screw-on filter bowl. Up to size 660 a one-piece bowl is standard. Size 660 is available either with a one-piece or a two- piece bowl. For size 990 and above, the filters are only available with the two-piece bowl. Standard equipment: zPort for clogging indicator in the filter head zEither threaded or flange port (for size 330 and above) zOil drain plug with pressure relief (for size 330 and above)

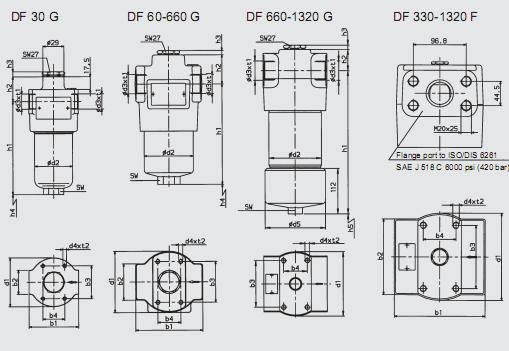

DF 30 G /DF 60-660 G/ DF 660-1320 G/ DF 330-1320 F
