Featuring Coreless Element Technology Flows to 150 gpm (570 lpm), 301 Series;
300 gpm (1135 lpm), 381 Series
Pressures to 675 psig (46.5 bar) Port Sizes: 2", 3", and 4" ANSI Flange Connections 301-381 Series
303-383 Series
Featuring Coreless Element Technology Flows to 400 gpm (1510 lpm), 303 Series;
700 gpm (2650 lpm), 383 Series Pressures to 675 psig (46.5 bar) Port Sizes: 2", 3", 4" and 6" ANSI Flange Connections 303-383 Series
HH254/HC254Series
Featuring Coreless Element Technology Flows to 120 gpm (454 L/min) Pressures to 500 psi (34.5 bar) Port sizes: 1-1/4" and 1-1/2"
HH254/HC254 Series
2804/2904 Series
Featuring Coreless Element Technology Flows to 45 gpm (170 L/min) Pressures to 600 psi (41.4 bar) Port size 1" 2804/2904 Series

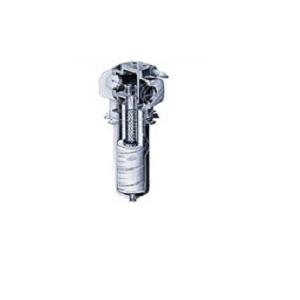

8110/9100 Series
Optional Differential Pressure Devices Gray Cast Iron Head Painted External Finish Drawn Steel Bowl High Strength Fatigue Rated Housing Full Flow Fast Response Bypass Valve O-Ring Seals Ultipo III Element Optional Drain Port (Not Shown)
8110/9100 Series
8670-71-74 Series
Non-Welded Construction (Gray Iron Head) Vent Plugs Changeover Handle with Latching Pin Mechanism Filter Element Change Instruction Plate Forged Steel Bowls Commuter Valve (To Repressurize Idle Side After Element Change) O-Ring Seals Throughout Filter "In-Service" Pointer Differential Pressure Device (Optional) Ultipo III Element Drain Plug
8670-71-74 Series

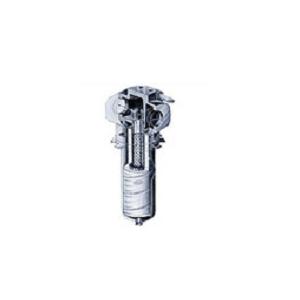

8800-10 Series
Optional Differential Pressure Devices Full Flow Fast Response Bypass Valve Easy Service Rotolok Ring Drawn Steel Bowl Optional Anti-Backflow Valve (not shown). Prevents drainage of reservoir or lines where filter is mounted below fluid level High Strength Fatigue Rated Housing Gray Cast Iron Head O-Ring Seals Ultipor III Element 8800-10 Series
8900-04-10-14 Series
Optional Differential Pressure Devices Full Flow Fast Response Bypass Valve Easy Service Rotolok Ring Drawn Steel Bowl Optional Anti-Backflow Valve (not shown). Prevents drainage of reservoir or lines where filter is mounted below fluid level High Strength Fatigue Rated Housing Gray Cast Iron Head O-Ring Seals Ultipor III Element
8900-04-10-14 Series
