Flows to 40 gpm (150 L/min)
Pressures to 150 psi (10 bar)
Port size: 1"

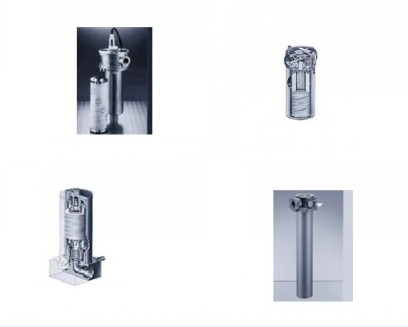

6220 Series

6300 Series

6400 Sreies

6500 Series

Optional Differential Pressure Devices
Full Flow Fast Response Bypass Valve
Gasket Seal  Spin-On Canister
Optional Anti-Back Flow Valve (not shown).  Prevents drainage of reservoir or lines where filter is mounted below fluid level  Mounting Surface
Gray Cast Iron Head
O-Ring Seal
Ultipor III Element 7400Series

Optional Differential Pressure Devices
Full Flow Fast Response Bypass Valve
Gasket Seal  Spin-On Canister
Mounting Surface  Gray Cast Iron Head
O-Ring Seals  Ultipor III Element
Optional Anti-Back Flow Valve (not shown). Prevents drainage of reservoir or lines where filter is
mounted below fluid level
7500-02 Series

 T-Handle Easy Service Cover
Bleed Port Plug  O-Ring Seals
Optional Differential Pressure Devices
Anodized Aluminum Alloy-Head, Tube and Cover
Fill Port  Full Flow Fast Response Bypass Valves
Ultipor III Element
Drain Port and Plug

8300-04-10-14 Series

8340-70 Series

 8310 or 8314 Assembly (Ultipor III Element)
Commuter Valve - Built in Design Requires No External Lines. Use to Equalize Pressure During
Element Change
Duplex Check Valve at Outlet - Seals Off-Line Filter to Prevent Backflow; Simplifies Element Change
Ball Type Open Center Transfer Valve - Ensures Continuous Filtration While Changing Elements
Without Shutting Down the Machine

8340-70 Series

8384-85 Series

8384-85 Series

UR619 Series

UR699 Series

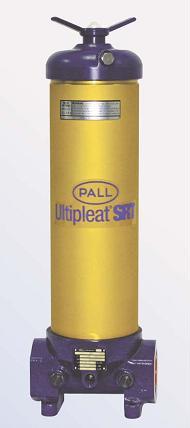

Patented Ultipleat (laid-over pleat) filter medium packCoreless, cageless element configuration
Pall Stress-Resistant Technology (SRT) Media
In-to-out filter element flow path
Flows to 265 L/min (70 US gpm)
Pressures to 10 bar (150 psi)
Port size 34", 1" and 11 4"

UT279 Series
