Pall-Fit Series Retrofit for JB1 filter elements used in offshore applications Dynalloy sinter-bonded filter media Minimum collapse differential pressure –268.9 bard (3900 psid) per ISO 2941 All machined flow surfaces have 63 RMS finishElectropolished hardware Available in 10 and 40 micron (μm) grades, 98% efficiency All 316/316L SS construction Outside to inside flow Built to ISO 9001 standards
PMM Filter Elements
MBS 1001 M020H MBS 1002 M050J MBS 1003 M100J7 MBS 1004 M250RE P24H4 M020 RE P24J4 M050 C9 P24RE6 M100 RE P24J76 M150 C9 P24H134 M200 R

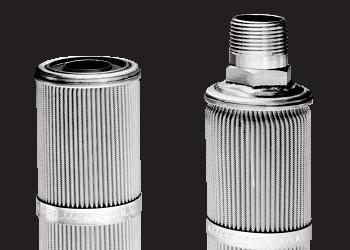

PMM Filter Elements PMM medium is a thin, sintered matrix of316L stainless steel powder within the pore structure of stainless steel wire mesh. It combines the best qualities of Pall PSS sintered powder medium and Pall Rigimesh sintered woven wire mesh medium. The PMM filter is designed so that the sintered bonds are at the points of contact, producing an extremely strong porous material whose wires do not shift and whose pore size integrity is continuously maintained. Designs are available suitable for temperatures up to1250°F (677°C).
PMM Metal Membrane Filter Cartridges All-stainless steel construction Controlled and fixed pore size High area pleated cartridges Efficiencies to 2 μm absolute in liquids Ultra-clean steam service Efficient cake formation and solids recovery Corrosion resistant High pressure resistant Withstands high reverse-flows High-temperature capabilities Repeatedly cleanable No soluble polymeric extractables No unloading or shedding Absolute rated for reliable performance ISO 9000 Certified Quality System Manufactured for use in conformance with cGMP FDA-listed materials per 21 CFR
PSS Series Standard 316 stainless steel cartridges are capable ofwithstanding a minimum collapse differential pressure of 50 psid in the forward flow (outside-in) direction to 600°and 50 psid in the reverse flow direction.

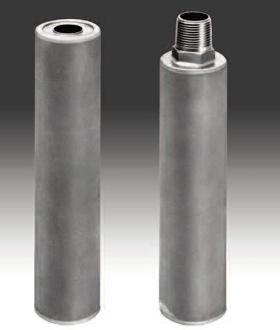

PSS Porous Metal Filter Cartridges
MBS100 1PD H MBS100 2PE J MBS100 3PH J7 MBS100 1P09 H MBS100 2S35 J MBS100 3S100 H MBS100 1S060 H13
PSS Porous Metal Filter Cartridges All- stainless steel constructionControlled and fixed pore sizePH grade for clean steamUp to 2x life of competitive filters High pressure and corrosion resistant Withstands high reverse-flows High-temperature capabilities Repeatedly cleanable No soluble polymeric extractables No unloading or shedding Absolute rated for reliable performance ISO 9000 Certified Quality System Manufactured for use in conformance with cGMP FDA-listed materials per 21 CFR

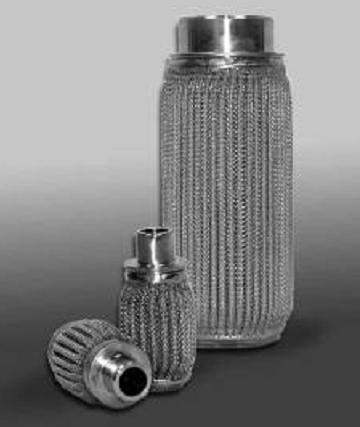

Rigimesh Filter Elements Rigimesh porous metal filter elementsare extremely permeable and are con-structed of high dirt capacity stainless steel (type 304 or 316L) woven wire mesh. Rigimesh media outperform other meshes because they are sintered woven wire meshes with higher void space. Pall sinters the wires at their points of con- tact, producing an extremely strong porous material whose wires will not shift under stress and whose pore size integri- ty is continually maintained.
