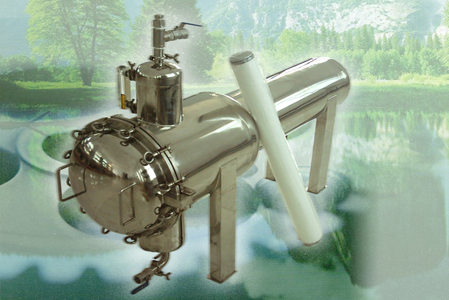

Features: it can effectively remove water boiled in oil, dispersed oil and machinery emulsified oil, when the oil concentration greater than 0.1% less than 1.0% waste oil removal efficiency up to 99%, when the oil concentration of more less than 300ppm more than 50ppm， oil removal efficiency up to 97%.
Equipment performance indicators
(1) maximum flow rate of inlet(m3 / h) 3.0 (2) oil content of inlet (ppm) ≤ 250 (3)highest oil content after separation(ppm) 7 (4) filter medium temperature (° C) ≤ 90 (5) Operating pressure range (MPa) 0.2-0.4 (6) feed inlet pipe DN32, ANSI Flange Oil-drain port diameters DN32, ANSI Flange Outfall pipe DN32, ANSI Flange Inflatable mouth diameter DN8 (tube outer diameter 10mm), metric connectors, screw
Exhaust valve interface
M20 x 2.0 x 15 mm (nuts, a sealed junction plane) (Iv) Equipment preparation (1) Cartridge type: JV/SFY-0997, acid-alkali-type Quantity (branch): 3 (2) Equipment Material: Full 304 stainless steel, including internal fasteners, pipes, brackets, oil, etc. row (3) Level Monitor: 1, glass tube type (4) The access channel interface standard: American Standard Flange (5) users to use and maintain manual: set (Chinese), with repair parts exploded view (6) Spare parts: spare filter element the two groups (of six) to a solid spiral paper tube packaging (E) to install and use, see product specifications safety precautions, see Data Sheet
(7) Filter replacement cycle (months) 3, normal use "3, the poor use of the environment
(8) Optional ancillary equipment: According to the cleanliness of processing of materials, choose the most suitable pre-filter, fine filters, etc. ancillary use, can effectively extend the life of coalescence-separation filter to reduce operational costs. Pre-filter (μm) 5 (micron) Fine filter (μm) 1 (micron)
