DUO-FINE 1401 Series Available in Retention Ratings of 0.45 to 50 microns (μm) Lifting Bail Provides Quick and Easy Cartridge Change Outs High Surface Area Provides Long Service Life Internal O-ring Seal Minimizes Contaminant Bypass Tin and Stainless Steel Hardware Provides Increased Mechanical Strength Manufactured Under ISO 9001 Quality System
The MCC1401 filter cartridge MCC1401U2-20ZH13 MCC1401U6-40ZH13 MCC1401E100H13 MCC1401E280H13 MCC1401E500H13

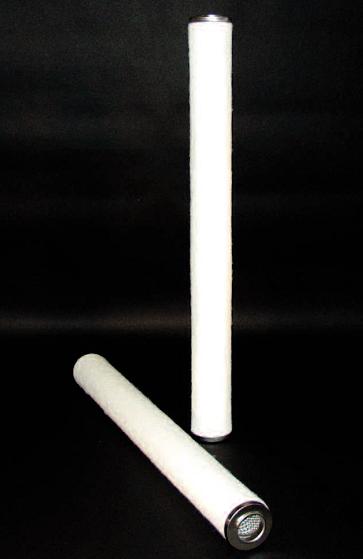

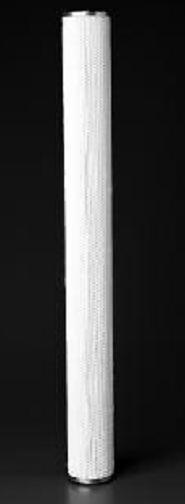

The MCC1401 filter cartridge is available in two basi types of media; Epocel – which is a resin impregnated cellulose, and Ultipor – a resin bonded glass fiber . These absolute rated media, specifically engineered, are available in varying grades with defined removal efficiencies and can provide up to 54 square feet of effective filtering surface area assuring long service life. See Table 1 for removal ratings of each medium type.
PALL PROFILE A-S 1401 Series
R1401FPS600

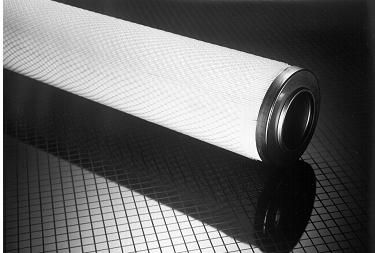

PALL PROFILE A-S 1401 Series Proprietary Depth Construction with an Absolute Rated Downstream Section, and a Continuously Profiled Pore Size Upstream Section PPS Medium is Chemically Inert for Use in Aggressive Service Tin Plated Carbon Steel Cores Provide Excellent Mechanical Strength R1401FPS600
Profile 1401 Series Filter A/S Series filters are constructed of an all polyphenylene sulfide (PPS) filter medium and are available in a variety of geometries an cores to match specific applications. Typical core construction includes 316L stainless steel or tin plated carbon steel. Contact your Pall representative for more information
Profile A-S 1401 Series Filter
MCC1401FPS600
Profile A-S 1401 Series Filter MCC1401 style filter constructed of polyphenylene sulphide (PPS) medium Proprietary, depth media construction with an absolute-rated downstream section, and a continuously profiled-pore upstream section PPS medium is chemically resistant for use in aggressive service at elevated temperatures Tin plated carbon steel core and stainless steel end-caps provide excellent mechanical strength Internally captured O-ring seal provides a positive and independent 360° element-to-housing seal Outside to inside flowMCC1401FPS600
